- ⚡Powerful electric kit: This electric bicycle modification kit is equipped with a 1000W high-efficiency DC brushless motor, which instantly unleashes powerful power and easily meets the challenges of steep slopes. It can reach a top speed of 26.1 to 31.07 miles per hour, allowing you to experience speed and excitement
- 🚲Complete kit: This kit includes almost all the parts you need to modify your bicycle, without the need to purchase them separately. The matching kit will provide you with more stable and consistent performance. The LCD display screen can display various basic information such as vehicle speed, battery level, and gear.
- ⚡Easy to control: The Pedal Assist Sensor (PAS) allows you to ride an electric bike without throttle response, ensuring that you can operate the bike in two ways. You only need to press the thumb throttle to easily adjust the motor boost level and accurately control the acceleration, thereby controlling the vehicle speed.
- 🚲Strong compatibility: The product is suitable for modifying snow motorcycles and bicycles with various wheel sizes of 26 inches(4-inch tire width). The motor overheating protection and IP54 waterproof rating can effectively extend the service life of the equipment, improve the safety of use and driving, and you can use it with confidence.
- ⚡26 inch front wheel drive design: The front wheel drive design provides direct power transmission, reduces energy loss, and improves vehicle handling flexibility and responsiveness. Whether you are making sharp turns or climbing mountains, you can have a better driving experience, full of modification fun.
Application
- This product is suitable for snowmobile and bicycle conversions with a wheel size of 26inch(4-inch tire width).
Specification
- Material: Iron, Aluminum
- Color: Black
- Process: Baking
- Assembly Required: Yes
- Motor Type: Brushless Gearless Motor
- Hall Sensor/Temperature Sensor: Yes
- Brakes: Low Level
- Brake: Disc Brake
- PAS: 1:1
- Speet: 1.1-4.2VDUAL Mode
- Voltage: DC 48V
- Power: 1000W
- Current: 30±1A
- Adaptable Wheel Size: 66.04cm/26in
- Applicable Wheel Width: 4 inches
- Wheelbase: 10mm*14mm/0.39in*0.55in
- Magnet Height: 30mm/1.18in
- Winding: 11*5
- Waterproof Grade: IP54
- Speed: 520rpm
- Max. Speed: 42-50km/26.1-31.07mile/h
- Cable Size: 2mm²
- Maximum Torque: 40N.m
- Gear Opening: 135mm/5.31in
- Package Size: 50*50*26cm/19.69*19.69*10.24in
- Gross Weight: 14kg/30.86lbs
- Net Weight: 13kg/28.66lbs

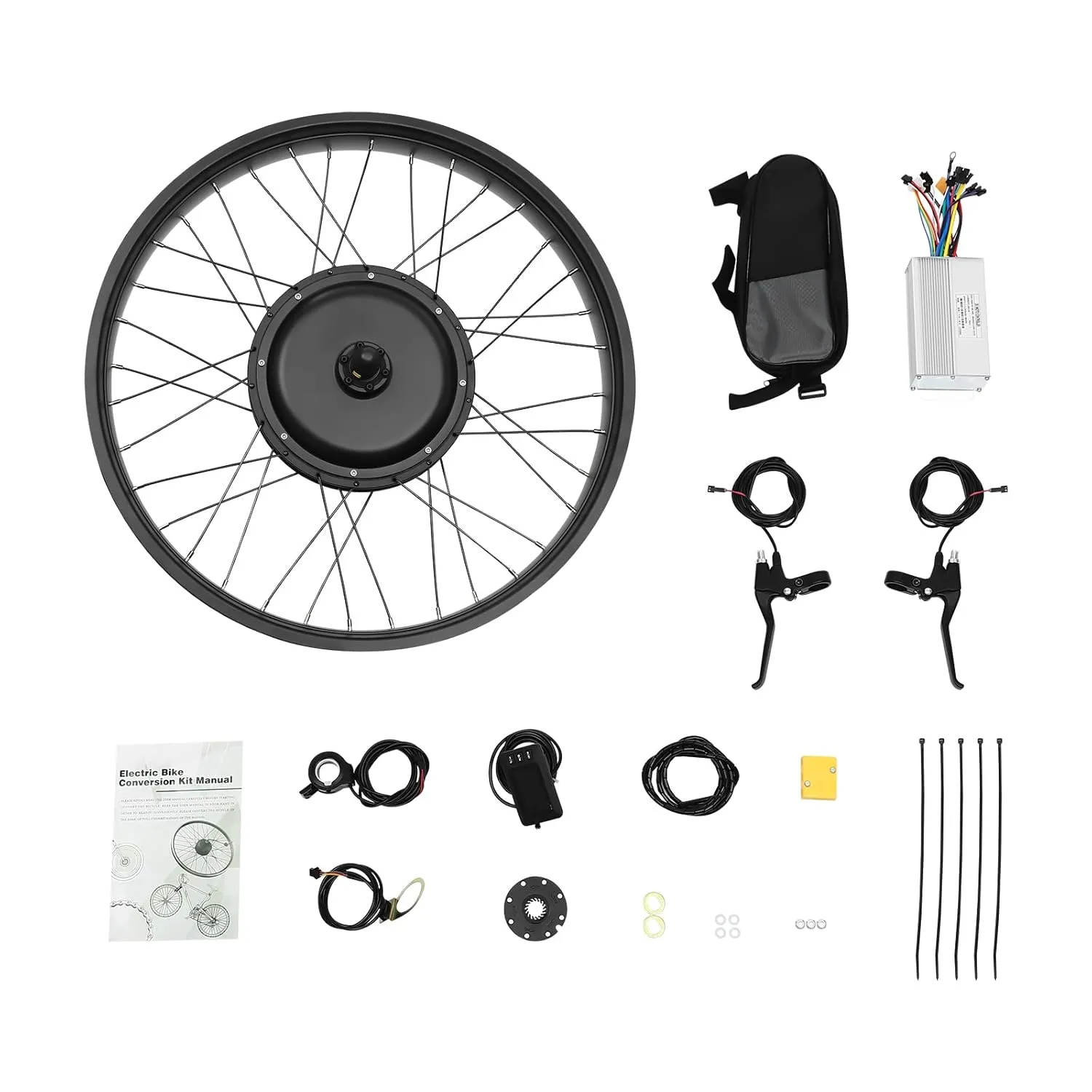

Package Included
- ✔1* Motor Wheel
- ✔1* Controller
- ✔1* Brake Lever Set
- ✔1* Thumb Grip
- ✔1* LCD Display
- ✔1 Set* Pedal Assist Sensor
- ✔1* English Manual
- ✔Other Accessories for Assembly
Notes
- Please note the wheel size before purchasing, our product is only suitable for wheels measuring 26 inches by 4 inches.
- Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
- Please note that the mileage mainly depends on the capacity of the battery, our products are not equipped with battery.
- Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
- Package Dimensions : 19.69 x 19.69 x 10.24 inches; 28.66 Pounds
- Date First Available : February 27, 2025
- Manufacturer : XiuPan
- Country of Origin : China
