Name: Schneider Electric DPE32B7 Easy TeSys IEC Contactor 15HP 480V 24VAC Coil, HVAC & AC Contactor, Pumps, Compressors, DIN-Rail Mount/Screw Fixing, 2HP 115V-1Ph, 3HP 230V-1Ph, 7.5HP 200-230V, 15HP 460V
SKU: 213776

DPE contactors offer quick simple setup; stable and durable with compact design to protect the contactor from dust and other environmental elements
Great switch solution for HVAC, elevators, food processing, pumps or compressors, conveyors, hoists and cranes, and agriculture
High quality, adaptable, and reliable operation even in extreme environments
Compatible with Schneider Electric DPEAN11 contact block, LAD9R1 reversing kit, and GV2AF3 mounting interconnection block
Flexibility to add motor disconnects to help met NEC requirements; must have Schneider Electric overload relay DPER22 and/or manual motor starter GP2E22 for operation, depending on your application

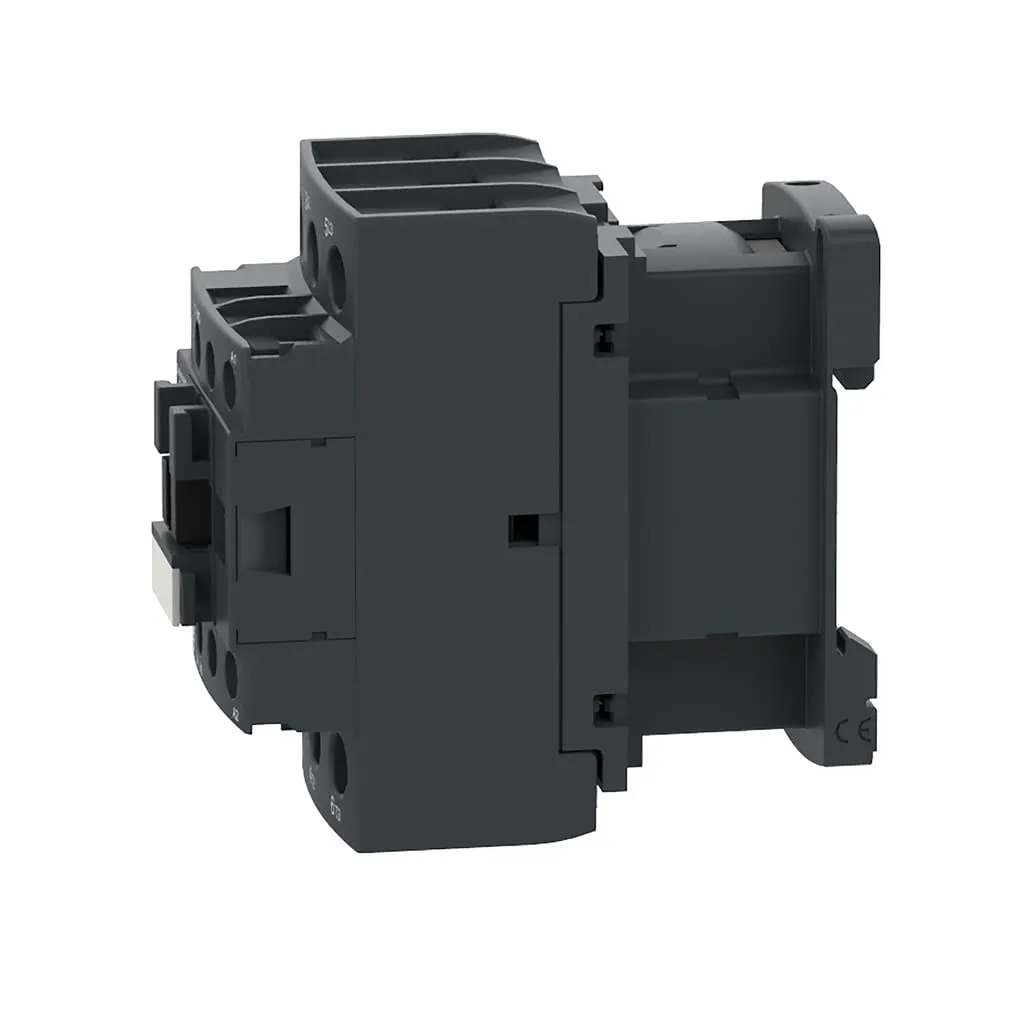

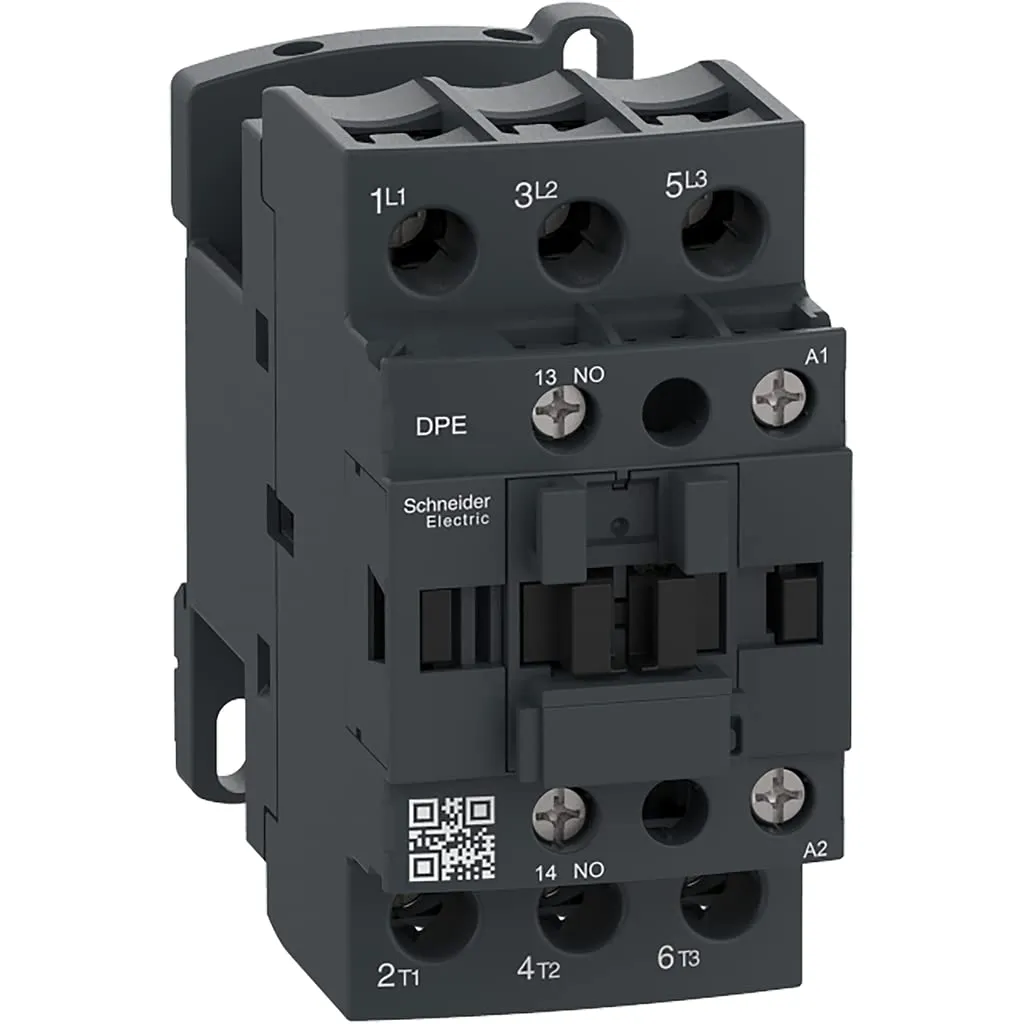

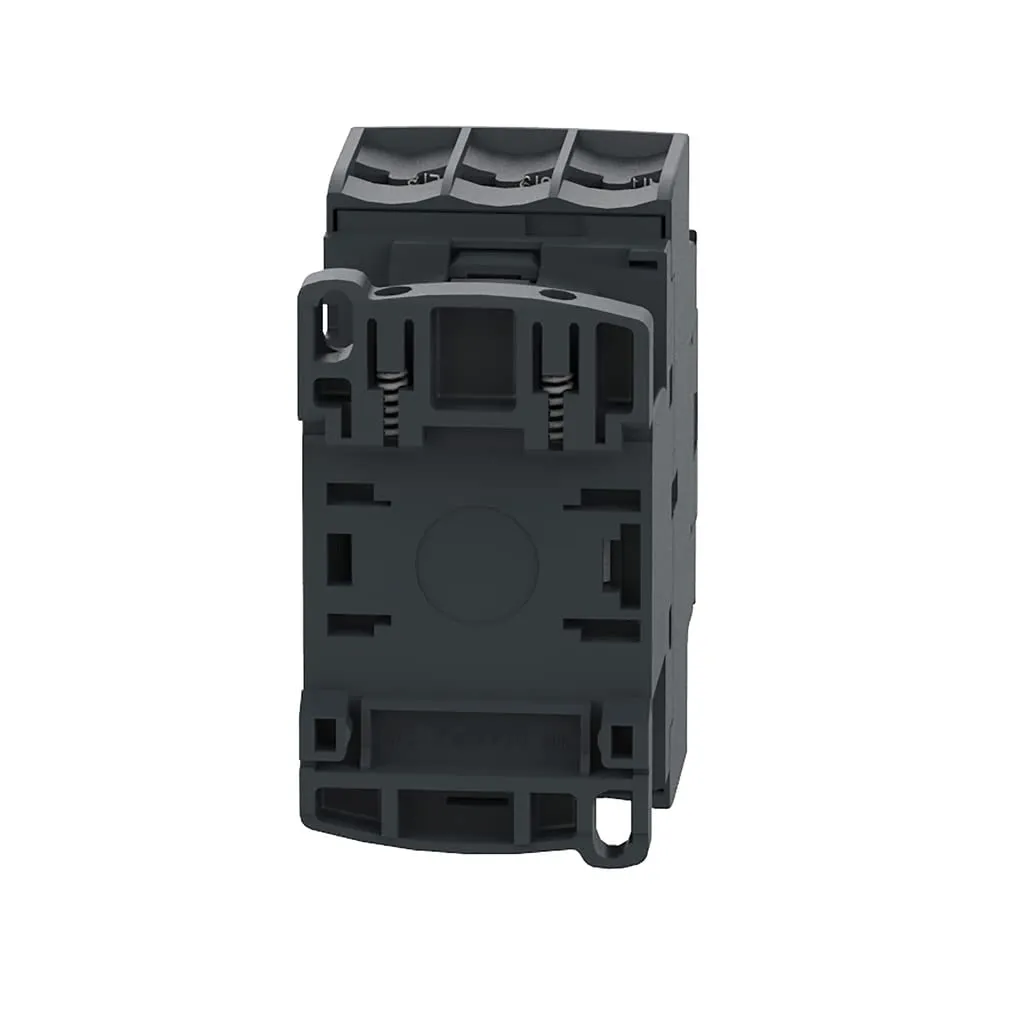

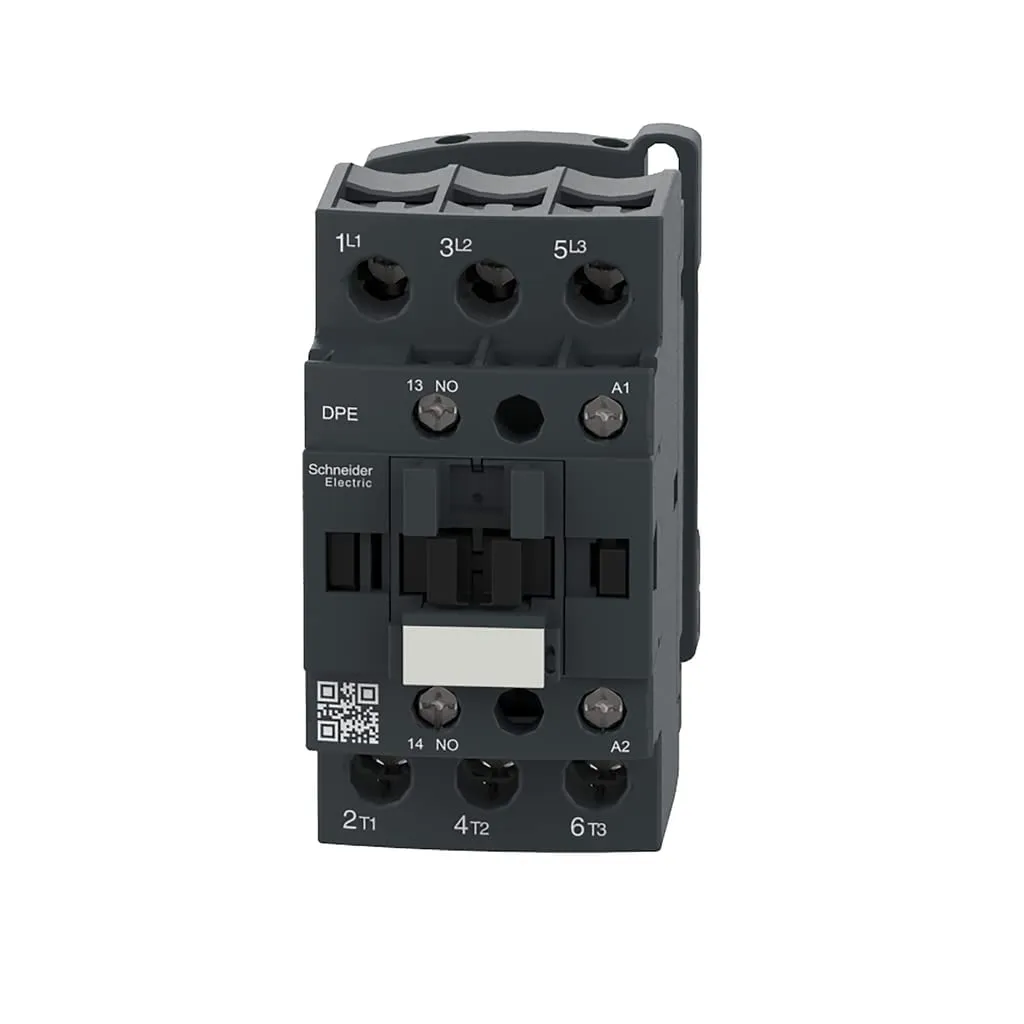

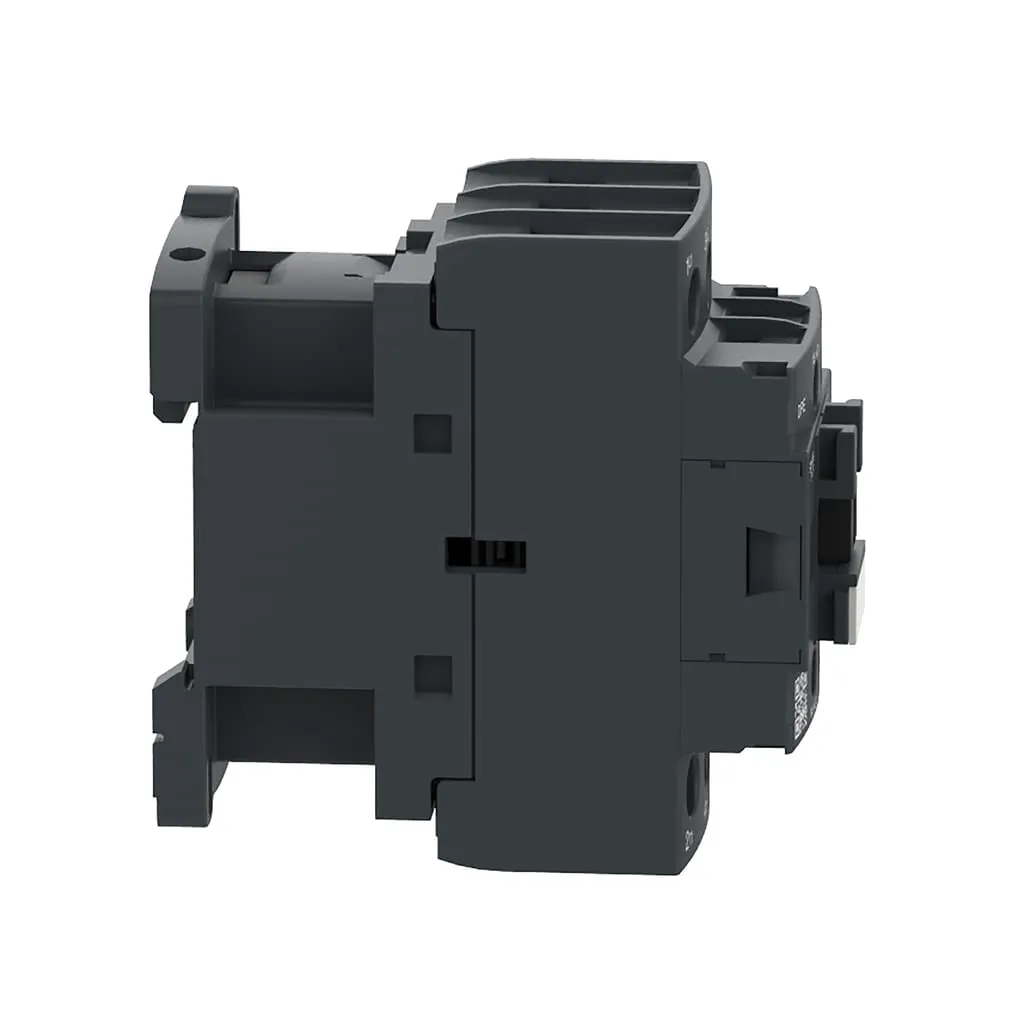

Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3 (15 HP@480V). It provides a 24V 50/60Hz AC coil, 1NO 1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Product Dimensions ‏ : ‎ 3.35 x 1.77 x 3.62 inches; 14.11 ounces
Date First Available ‏ : ‎ July 22, 2021
Manufacturer ‏ : ‎ Schneider Electric
Country of Origin ‏ : ‎ Indonesia

Schneider Electric DPE32B7 Easy TeSys IEC Contactor 15HP 480V 24VAC Coil, HVAC & AC Contactor, Pumps, Compressors, DIN-Rail Mount/Screw Fixing, 2HP 115V-1Ph, 3HP 230V-1Ph, 7.5HP 200-230V, 15HP 460V

Product Details
