- 【INTEGRATED SERVO MOTOR】- The Precise position and speed control to meet the most demanding application requirements.
- 【SPECIFICATION】- Voltage: DC 36V; Output shaft length: 8 * 33MM; Moment of force: 0.6 Nm; Speed: 3000 rpm
- 【EXCELLENT PERFORMANCE】- Simple structure, silent, easy to use. Based on the encoder space vector current control algorithm, it has excellent performance across the entire speed range.
- 【HIGH EFFICIENT】- Maximize the energy conversion rate in the most compact space, which is in low power consumption and high efficiency.
- 【APPLICATION】- Applicable to a variety of automation equipment and tools, such as mechanical arms, jet plotters and so on.
Features:
Precise position and speed control to meet the most demanding application requirements. Simple structure, low noise, easy to operate. Based on the encoder space vector current control algorithm, it has excellent performance in the full speed range. Maximizing the energy conversion rate in the most compact space, which is in low power-consumption and high efficiency. Applicable to a variety of automation equipment and instruments, such as mechanical arms, jet plotter and so on.
Specification:
Material: Metal

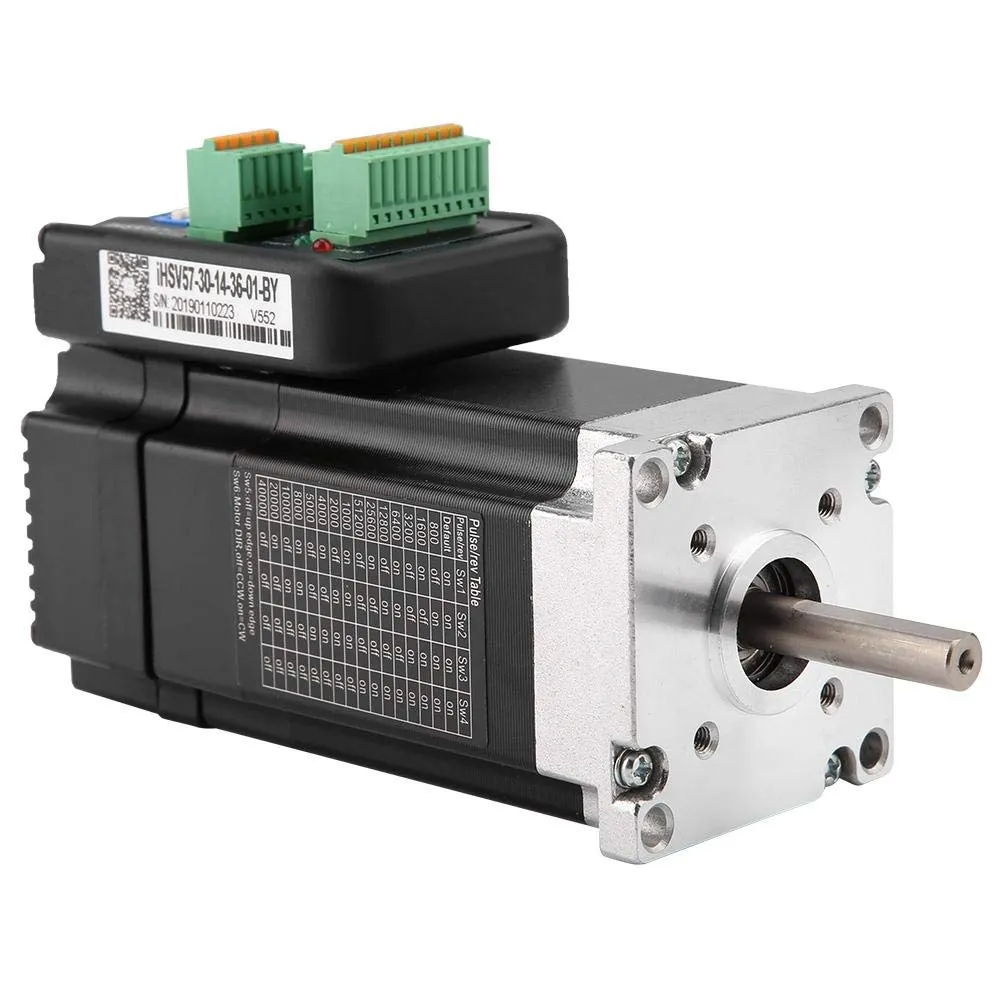

Model: IHSV57-30-14-36-01-BY
Voltage: DC 36V
Output Shaft length: 8*33MM
Moment of force: 0.6N.m
Speed: 3000rpm
Motor length: 128±1MM
Encoder line: 1000 line
Weight: 1662g/58.6oz
Package List:
1 * Integrated Servo Motor
Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
- Product Dimensions : 7.87 x 5.12 x 3.15 inches; 3 Pounds
- Date First Available : July 5, 2019
- Manufacturer : Vikye
- Country of Origin : China
